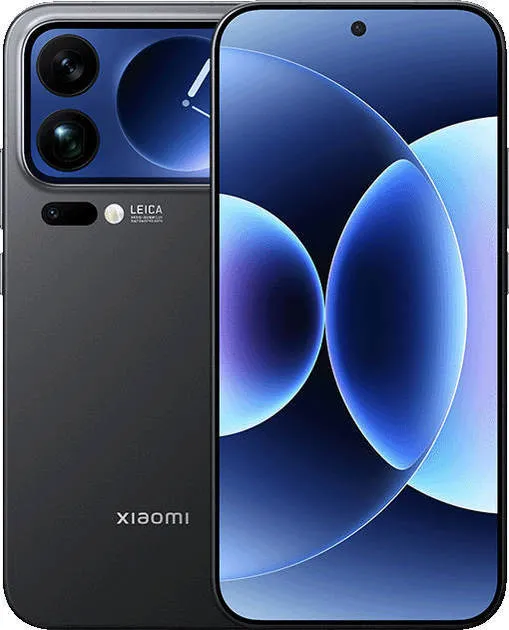

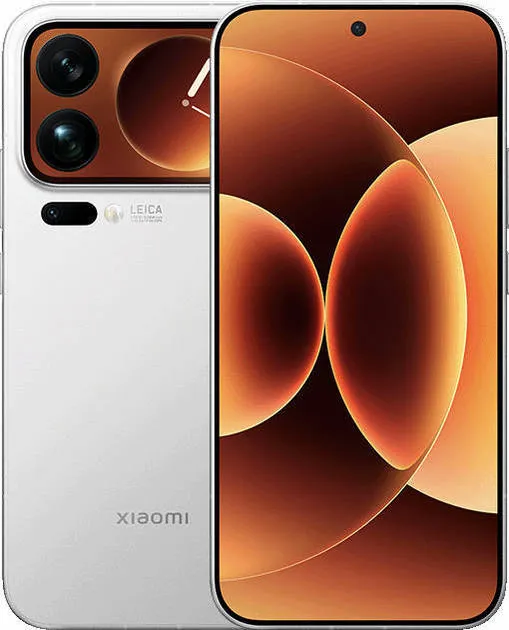

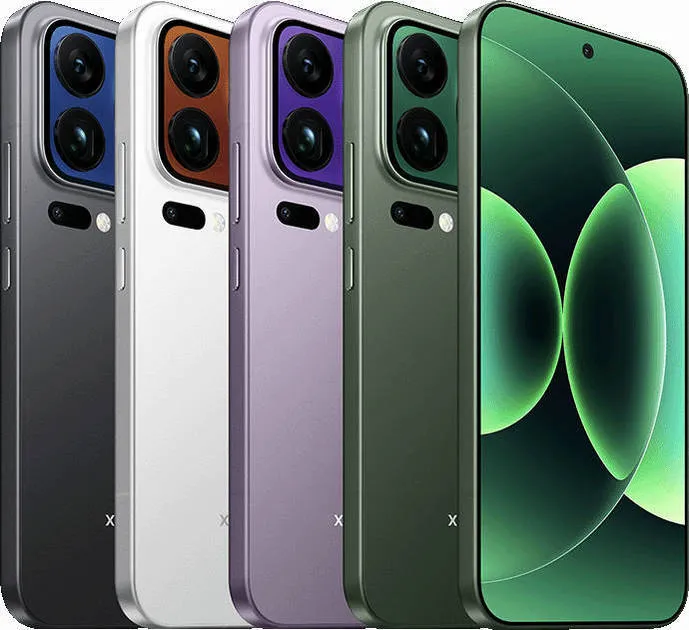

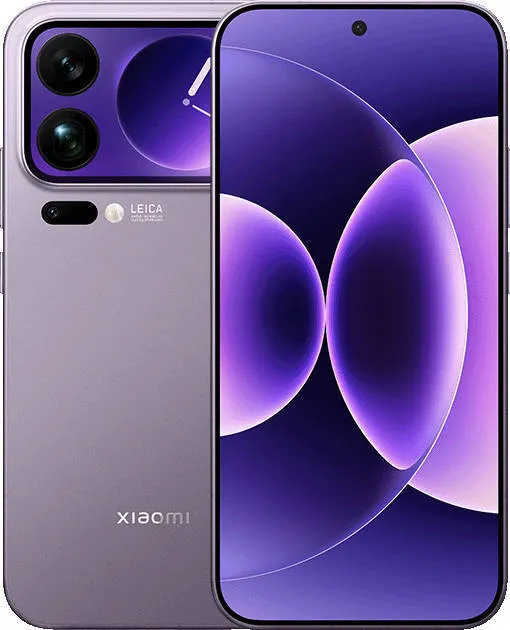

Xiaomi 17 Pro Max

Feb 17, 2026 @ 17:58 PM

The Xiaomi 17 Pro Max sits on top of the lineup, at least for now, until the Xiaomi 17 Ultra comes out, and is built around a 6.9-inch LTPO OLED display. That’s a slight bump from the 6.73-inch screen on the Xiaomi 15 Pro last year.

Xiaomi 17 Pro Max Key Specs

Android v16

Performance
Qualcomm Snapdragon 8 Elite Gen 5
Octa core (4.6 GHz, Dual Core + 3.62 GHz, Hexa Core)
12 GB RAM
Display
Main Display 6.9 inches (17.53 cm); LTPO AMOLED 1200×2608 px 120 Hz Refresh Rate Bezel-less with punch-hole display
Cover Display 2.9 inches (7.37 cm); LTPO AMOLED 596×976 px 120 Hz Refresh Rate
Rear Camera
Triple Camera Setup 50 MP Wide Angle Primary Camera 50 MP Ultra-Wide Angle Camera 50 MP Periscope (upto 5x Optical Zoom) Camera
Dual-color LED Flash
8k @30 fps Video Recording
Front Camera
50 MP Wide Angle Lens
4k @30/60 fps Video Recording
Battery
7500 mAh
100W Hyper Charging; USB Type-C port
General
SIM1: Nano, SIM2: Nano
5G Supported
512 GB internal storage, Non Expandable
Dust Resistant, Water Resistant

Key Specs
RAM & Storage	12 GB RAM + 512 GB
Processor	Qualcomm Snapdragon 8 Elite Gen 5 SM8850-AC
Rear Camera	50 MP + 50 MP + 50 MP
Front Camera	50 MP
Battery	7500 mAh
Display	6.9 inches (17.53 cm)

General
Operating System	Android v16
Custom UI	HyperOS

Performance
Chipset	Qualcomm Snapdragon 8 Elite Gen 5 SM8850-AC
CPU	Octa core (4.6 GHz, Dual core, Oryon + 3.62 GHz, Hexa Core, Oryon)
Architecture	64 bit
Fabrication	3 nm
Graphics (GPU)	Adreno 840
RAM	12 GB
RAM Type	LPDDR5X

Display

Main Display

Display Type

LTPO AMOLED

Screen Size

6.9 inches (17.53 cm)

Resolution

1200×2608 px

Peak Brightness

3500 nits

Refresh Rate

120 Hz

Aspect Ratio

19.5:9

Pixel Density

416 ppi

Screen to Body Ratio (calculated)

92.25 %

Screen Protection

Yes

Bezel-less Display

Yes with punch-hole display

HDR 10 / HDR+ Support

Yes, HDR 10+

Cover Display

Display Type	LTPO AMOLED
Screen Size	2.9 inches (7.37 cm)
Resolution	596×976 px
Refresh Rate	120 Hz

Design
Height	162.9 mm
Width	77.6 mm
Thickness	8 mm
Weight	219 grams
Water Resistance	Yes, Water resistant, IP68, (up to 6 minutes in a depth of 30 meter)
Ruggedness	Dust proof

Rear Camera

Resolution

Camera	MP	Aperture	Lens Features	Focal Length	Sensor Size	Sensor Name	Pixel Size	Zoom
Primary	50 MP	f/1.67	Wide Angle	23 mm	1/1.28″	Sony	1.22µm
Secondary	50 MP	f/2.4	Ultra-Wide Angle	17 mm	1/2.76″		0.64µm
Tertiary	50 MP	f/2.6	Periscope	115 mm	1/2″			upto 5x Optical Zoom

Autofocus

Yes, Dual Pixel Phase Detection Autofocus

OIS

Yes

Flash

Yes, Dual-color LED Flash

Image Resolution

8150 x 6150 Pixels

Settings

Exposure compensation, ISO control

Shooting Modes

Continuous Shooting
High Dynamic Range mode (HDR)

Camera Features

Digital Zoom
Auto Flash
Custom Watermark
Face detection
Touch to focus

Video Recording

8k @30 fps
4k @30/60/120 fps
Full HD @30/60/120/240/960 fps
HD @1920 fps

Video Recording Features

Slow Motion
Video HDR

Front Camera

Resolution

Camera	MP	Aperture	Lens Features	Focal Length
Primary	50 MP	f/2.2	Wide Angle	21 mm

Autofocus

Yes, Phase Detection Autofocus

Video Recording

4k @30/60 fps
Full HD @30/60 fps
HD @30 fps

Battery
Capacity	7500 mAh
Battery Type	Silicon Carbon
Quick Charging	Yes, 100W Hyper Charging
Wireless Charging	Yes, 50W Wireless Charging
Wireless Reverse Charging	Yes, 22.5W Wireless Reverse Charging

Storage
Internal Storage	512 GB
Storage Type	UFS 4.1
Expandable Storage	No

Network & Connectivity
SIM Slot(s)	Dual SIM
SIM Type	SIM1: Nano, SIM2: Nano
Network Support	5G, 4G
VoLTE	Yes
SIM 1	5G bands, 4G bands Expand
SIM 2	5G bands, 4G bands Expand
Wi-Fi	Yes, Wi-Fi 7 (802.11 a/b/g/n/ac/be/ax) 5GHz, MIMO
Wi-Fi Features	Wi-Fi Direct, Mobile Hotspot
Bluetooth	Yes, v5.4
GPS	Yes with A-GPS, Glonass
NFC	Yes

Multimedia
Stereo Speakers	Yes
Audio Jack	USB Type-C
Audio Features	Dolby Atmos

Sensors
Fingerprint Sensor	Yes
Fingerprint Sensor Position	On-screen
Fingerprint Sensor Type	Ultrasonic
Other Sensors	Light sensor, Proximity sensor, Accelerometer, Barometer, Compass, Gyroscope
